The machine adapts to splitting the hard or soft leather symmetrically, which the width is less than 420mm and the thickness is less than 8mm, according to the required thickness in the industry of leather products. It can adjust the splitting thickness freely, improve the quality of products and strengthen the competitive power of markets.

CHARACTERS

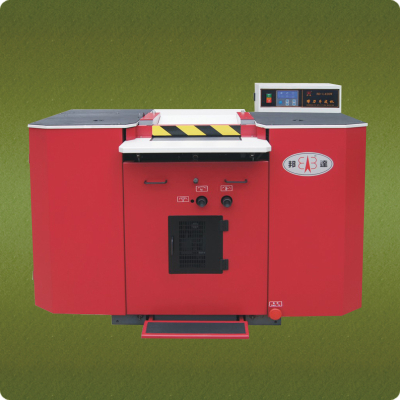

BD-420W band knife splitting machine is manufactured according to the structural principle of German Fortuna Splitting machine. The material and the performance of parts of the machine are very good and durable. The quality reaches high standard, and it is reliable and economy. It can offer reasonable output for customers. Meanwhile, it can ensure the perfect quality of leather.

1：Indicate the splitting thickness by number, the in finitely variable adjustment of feeding.
2：With automatic feed registration device, no need to adjust cutting tool.
3：Adjust the clearnace of pressure pad and cutting tool automatically to make the splitting precision much higheer.
4：Freestanding set of dust adsorbing and knife grin ding dust absorbing.
5：Automatic pause system when leather material entangles in.
6：Auto matic detection system of electronic phase.
7：Adjusting knife grinding with the single handle device and automatic control equipment when start.
8：The outsize flying wheel makes the operation of band knife morse steady and exact.
9：The longer band knife of 3570mm is durable and economy, which reduces the cost.
10：The accurate rail makes the movement of flying wheel more reliable, and the replacement of band knife more easy, quick and convenient.
11：Split different leather, pressusre of splitting can be adjusted automatically.
12：Appropriate working height can reduce the tire of operation.
13：Ther mechanical parts always lubricate.

Model

BD-420W

Max Width Of Split

420mm

Max Thickness Of Split

8mm

Min Thickness Of Split

0.15mm with top bar

0.5mm with top feed roll

Feeding Speed

1-20m/min

Specification Of Band Knife

3570×50×0.8mm

Power

3.5Kw

Exterior Size

1600×960×1420mm

Packing Size

1800×1230×1540mm

Net Weight

720kg

Gross Weight

890kg
